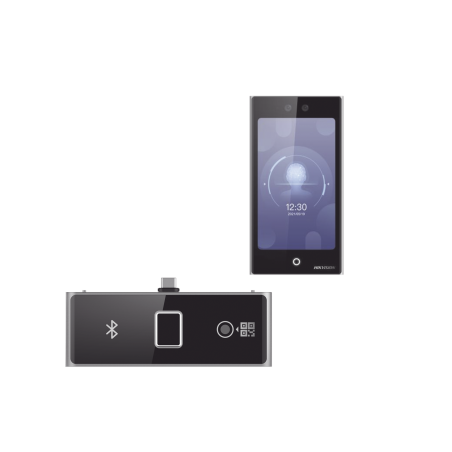

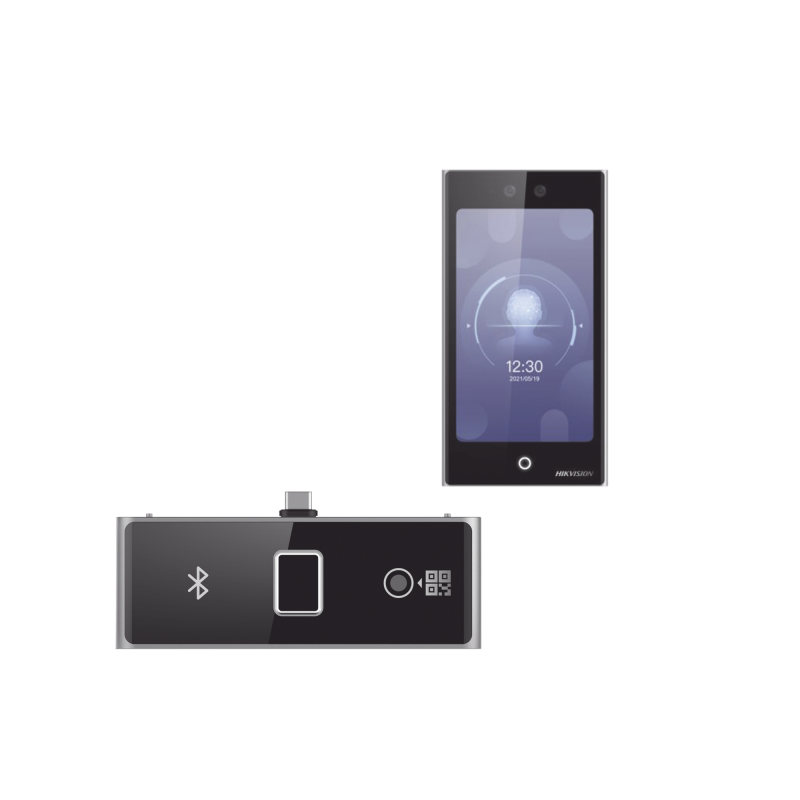

DS-K1T673DWX/K

Main features:

• 7" touch LCD screen (1024x600)
• Dual 2MP cameras, with complementary light (IR, WDR).
• IP communication (10/100/1000 Mbps).
• Distance for face recognition: 0.3 to 3 meters.
• Multiple authentication.
• Supports up to 10,000 faces.
• Supports up to 50,000 Mifare, Feñica, Desfire cards. See here.
• Supports up to 10,000 fingerprints with module (sold separately).
• Supports up to 150,000 events.
• Access control by schedules.
• Bidirectional audio.
• Mask detection.
• Supports recognition of multiple people (up to 5 at the same time).
• Warranty: 2 years.
• âÅâ IVMS4200
• âÅâ HikCentral (through license.

• Power supply: 12Vdc to 24Vdc @ 2A (not included).
• Operating temperature: -30°C to 60°C.
• Supported humidity: 0 to 90% (non-condensing).
• Dimensions (mm): 110.5 x 209.2 x 24.
• Protection index: IP65.

Interfaces:

• Wiegand: 1.
• Network: 1.
• WiFi: 1.
• USB (for module): 1.
• RS-485: 1.
• Alarm IN/OUT: 2/1.
• Doorbell: 1.
• Exit button: 1.
• Tamper: 1.
• Relay output for lock.
• 3.5mm audio output.

• Instant facial recognition with a 99% precision rate.
• Optional fingerprint reader module can be added.
• Compatible with Hikvision IP intercom solution.
• Managed through IVMS4200.

Compatible monitors:

• DS-KH6220-LE1  (local only, no App call).
• DS-KH6320-WTE1
• DS-KH8520-WTE1
• DS-KH9510-WTE1
• DS-KH9310-WTE1
